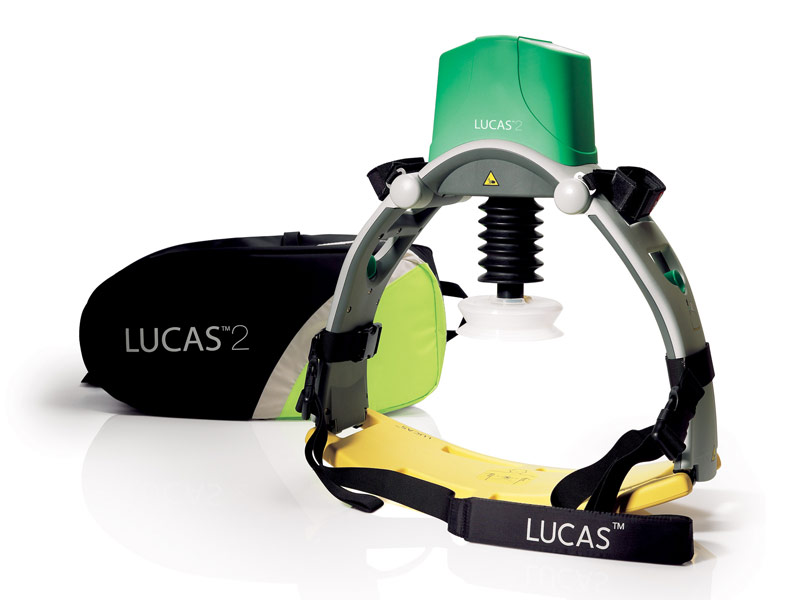

LUCAS® 2 Chest Compression System

Now electrically powered, the life-saving medical device offers the most compact, lightweight and portable solution to maintain circulation in cardiac arrest patients.

Price excludes VAT @ 20%

£8,286.35exc VAT (£9,943.62 inc VAT)

What's included?

  • LUCAS 2 Chest Compression System
  • Carrying Case
  • 2 Patient Straps
  • 2 Stabilization Straps
  • 3 Suction Cups
  • 1 Rechargeable Battery

Technical Specifications

Chest Compressions

  • Rate: 100 per minute
  • Depth: 4-5 cm
  • Equal compression/decompression duty cycle.
  • Allows for full chest recoil.

Patients Eligible for Treatment

  • Sternum height of 17–30.3 cm
  • Maximum chest width of 44.9 cm
  • Not restricted by patient weight.

Power Source and Operation

  • Electrical operation with rechargeable Lithium Ion Polymer (LiPo) battery alone or together with External Power Supply.
  • 12-24V DC car outlet.
  • 100-240V, 50/60Hz AC wall outlet.
  • Battery run time: 45 minutes (typical)
  • Operating temperature: 0-40°C
  • Battery recharge time in external charger: < 4 hours at room temperature
  • Battery expected service life: 200 uses or 3 years
  • Battery classification: IP44

Physical Characteristics

  • Weight (including battery): 7.8kg
  • Dimensions (H x W x D): 57 x 52 x 24 cm
  • Dimensions in carrying bag (H x W x D): 65 x 33 x 25 cm

The second generation LUCAS™2 builds upon the well-proven LUCAS™1 technology, with a change of driving source from pneumatic to electric. LUCAS™2 operates for 45 minutes on the latest battery technology (with no test-cycles or reconditioning required) and may also be connected to and operated from electricity wall outlets or car outlets. The battery is neatly integrated in the hood, making LUCAS™2 a lightweight and compact device to store and carry.

Features & Benefits

  • 100 compressions per minute with a depth of 4-5 cm.
  • 50/50 duty cycle, for compression and decompression.
  • Complete chest recoil before next compression. Tireless – minimizing “no-flow” time.
  • The same quality for all patients and over time, independent of transport conditions, rescuer fatigue, or variability in experience level of the caregiver.
  • Can be applied within seconds and is designed to minimize interruptions of manual CPR during application.
  • Frees up caregivers to focus on other life-saving tasks; ventilation, medication, defibrillation as well as decision making on continued care and therapy.
  • Small and lightweight Back Plate facilitates application in confined spaces.
  • Two compression modes; 30:2 mode or a continuous mode with ventilation alerts.
  • Quieter operation than Lucas 1.
  • Allows access to patient's chest to place defibrillation pads.
  • Smart Restart function allows for an immediate resumption of compression after change of Battery as it remembers the patient settings during 60 seconds.
